As a veteran of CNC machining, I know that it’s all in the details.
Chamfering plays a critical role in precision manufacturing and engineering.
It’s not just about product aesthetics and safety, it’s a critical process that ensures the smooth assembly and operation of components.
I’d like to share with you a comprehensive guide to chamfering technology, from basic concepts to practical applications to precise measurements, to help you achieve the best results in your manufacturing process.
What is chamfering?
Chamfering is a metalworking process that removes the sharp edges of materials to create beveled or rounded corners.
This process not only prevents users from injury when using the product but also improves the assembly efficiency and precision of the product.
Chamfering technology is widely applied to various materials, including metals, plastics, and wood, and is an indispensable part of modern manufacturing.
Why chamfering
Safety: It removes sharp edges to prevent user injuries and improve handling.
Assembly: Chamfering aids in the smooth assembly of parts by correcting dimensions and guiding alignment.
Prevention: It prevents damage from sharp edges or burrs that could cause wear or malfunction.
Aesthetics: A well-chamfered product looks more polished and professional.
Efficiency: Chamfering can streamline production and cut costs by reducing the need for additional finishing processes.
What are the main types of chamfers and their applications
C Chamfer: This is a common type of chamfer that creates a 45-degree angled surface, typically used to remove sharp edges and provide a smooth transition.
R Chamfer: The process of creating a rounded edge, which provides a smooth surface without sharp corners, often used in applications requiring high safety or ease of use.
Thread Chamfer: This type of chamfer is used to remove minor burrs and sharp edges, usually without defining a specific chamfer shape or size, primarily to provide a surface free of sharp edges.
How to express chamfering
C Chamfer: Typically denoted by the letter “C” followed by a number, such as “C5”, which means the chamfer is made 5 millimeter away from the corner.
R Chamfer: Represented by the letter “R” followed by a number that indicates the radius of the chamfer arc, such as “R5” for a radius of 5 millimeters.
Thread Chamfer: This type of chamfer does not have a specific notation as it is usually intended to remove minor burrs and sharp edges rather than define a particular chamfer size.
On drawings or specifications, it might simply be noted as “no sharp edges” or “deburring.”
How to make high-precision chamfers
Turning: This method is used for cylindrical materials, where the material is rotated and a cutting tool is applied to achieve precise chamfering.

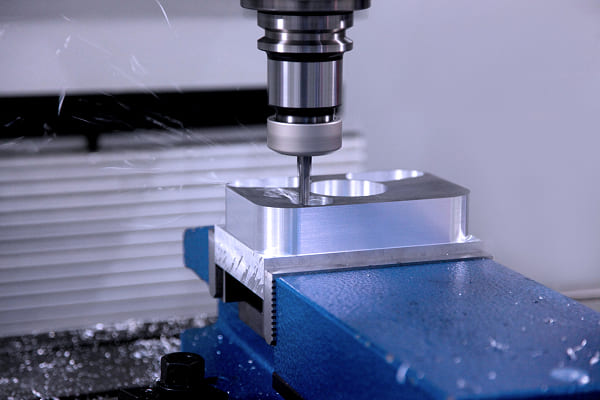

Milling: Chamfering is performed on stationary materials using a rotating cutting tool, suitable for flat materials and capable of quickly completing large areas of chamfering work.
Drilling: The edge chamfering is achieved by using a drill bit slightly larger than the hole diameter, a method that is simple and fast, suitable for rapid production.
Filing and Sanding: Manual tools such as files and sanders are used for chamfering, mainly for thread chamfering to remove burrs and sharp edges.
How to accurately measure chamfers
Measuring C Chamfer: Specialized tools such as C chamfer calipers or chamfer measuring instruments can be used, where the tool is pressed against the chamfer and the dimension is read.
Measuring R Chamfer: To measure the radius of an R chamfer, tools like R Angle Gauge, R calipers, or CR calipers can be employed, with the tool fitting against the chamfer and the scale being read.
Measuring Thread Chamfer: For thread chamfers, since there is typically no specific chamfer dimension defined, it is mainly assessed through visual inspection and tactile examination to ensure all burrs and sharp edges are removed.
Common problems and solutions
Uneven or inaccurate chamfering:
Cause: Tool wear, lack of machine stability, or incorrect tool settings.
Solution: Regularly check and replace tools, ensure machine stability, and set tool angles and depths correctly.
Insufficient surface finish:
Cause: Tool dullness, improper cutting parameters or insufficient machine rigidity.
Solution: Use sharp tools, optimize cutting speed and feed rate, and improve machine rigidity.
Burr and chip problems:
Cause: Tool wear, improper use of cutting fluid or incorrect tool angle.
Solution: Replace the tool in time, use the proper cutting fluid, and adjust the cutting in and out angle of the tool.
Chamfer size does not meet the requirements:
Cause: Incorrect tool setting or inaccurate measurement method.
Solution: Double-check the tool settings and use accurate measuring tools and methods.
Closing
Chamfering technology is a basic and critical process in modern manufacturing. It not only improves the safety and aesthetics of the product, but also has an important impact on improving the assembly efficiency and product performance.
