Aluminum alloys are lightweight and diverse and can be used in a variety of applications.
Among them, A5052 is a typical aluminum alloy.
This article describes the functions and applications of this material, A5052.
As well as the differences between it and its similar material A5056, and the points to consider when handling A5056.
What is A5052?
A5052 is an aluminum alloy that is classified as "5000 series" by adding magnesium to the aluminum. In the 5000 series, the magnesium content of 2.2% to 2.8% is called A5052.
Al-Mg series alloys (5000 series aluminum alloys):
Due to its good corrosion resistance and weldability, this alloy system has a relatively wide range of applications.
Medium magnesium added alloys, such as 5052 alloy, with moderate strength and large additions are commonly used as tank covers and structural materials for ships, vehicles, chemical plants, etc.
A5052 is a typical aluminum alloy that is widely used in a variety of products due to its balanced properties and easy availability in the market.
A5052 Properties
The 5000 series with the addition of magnesium is based on aluminum and has higher strength, corrosion resistance and weldability.
A5052 Strength
A5052 has excellent static and fatigue strengths at low temperatures, and the lower the temperature, the higher the tensile strength.
On the other hand, the tensile strength decreases as the temperature increases, so care must be taken when using it in high temperature environments.
A5052 is known to deteriorate when left in a cold working condition for a long time at room temperature. Therefore, it is generally used for stabilization after heat treatment to suppress the effects of aging.
A5052 corrosion resistance
A5052 forms an oxide film on the surface, so it has excellent corrosion resistance without surface treatment.
(Usually used after aluminum oxide treatment in environments where higher corrosion resistance is required, such as outdoors.)
A5052 Solderability
Aluminum alloys have high thermal conductivity and are difficult to weld. Among them, A5052 is known as a relatively easy material to weld between aluminum alloys because it contains magnesium.
(Compared with other metal materials, weldability is low, so care must be taken when welding.）
Difference between A5052 and A5056
In the 5000 series of aluminum alloys, A5052 is very similar to A5056. Both have similar properties in aluminum alloys because both aluminum alloys contain magnesium.
A5056 contains a larger percentage of magnesium, about 4.5% to 5.6%. Compared to A5052, it has better machinability and a better finish after anodizing. On the other hand, the solderability of A5052 is better.
Surface finish of A5052
A5052 has good surface finish properties and is compatible with a variety of treatments.

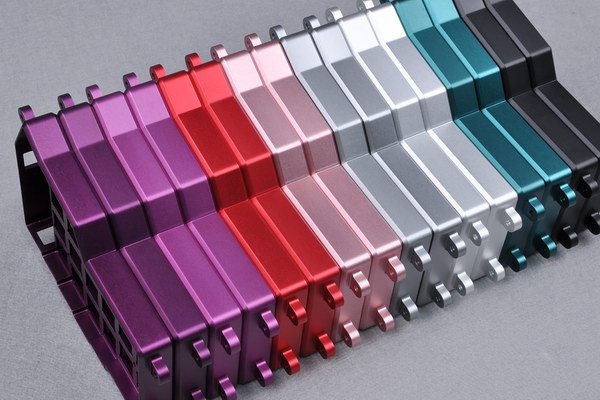

Anodizing
Aluminum alloys are sometimes anodized to improve corrosion resistance.
In addition to plain white anodized aluminum, there are also "hard anodized" and "colored anodized" types of aluminum oxide that can be used depending on the application.
A5052 is compatible with most anodized aluminum treatments and has the highest corrosion resistance of any aluminum alloy due to the influence of magnesium.
Even without anodizing, an oxide film will form, but aluminum is initially prone to scratching and may corrode from scratches, so surface treatment is required for products where appearance is important or where there are many scratches.
Electroplating
A5052 is usually anodized, but some applications use "chemical nickel plating".
This is a surface treatment that ensures a degree of hardness while uniformly adjusting the thickness of the electroplating.

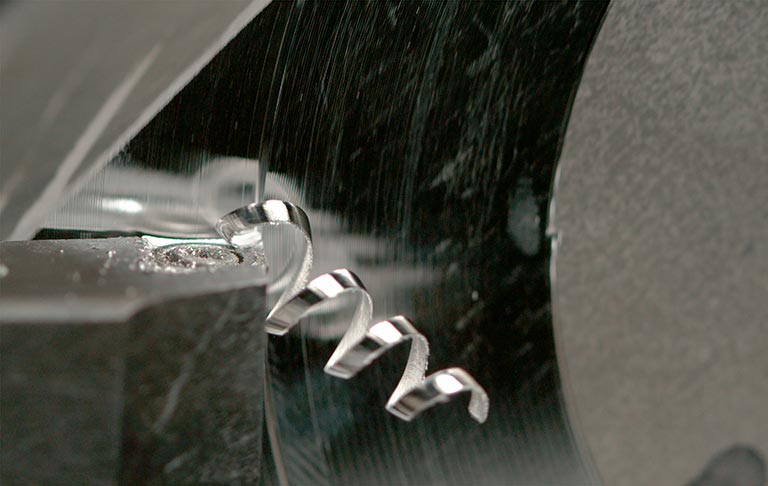

A5052 Cutting Points

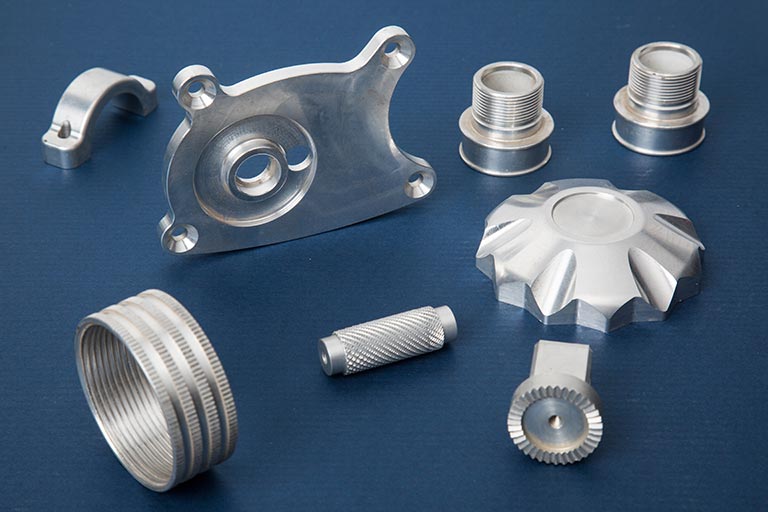

A5052 has particularly good machinability among aluminum alloys.
Common cutting problems with aluminum alloys include loss of finishing accuracy and burrs due to welding, etc.
In order to solve these problems, attention must be paid to tool selection and machining methods.
A5052 Cutting tool selection for machining
When machining A5052, it is important to select a tool that minimizes cutting forces.
By keeping the cutting force low, the temperature rise during cutting can be suppressed and machining accuracy due to welding can be avoided.
A5052 Key points of cutting conditions
It is also important to set cutting conditions in order to suppress the temperature rise during cutting.
For aluminum alloys containing A5052, high speed cutting while coolant cooling reduces the frictional resistance acting on the front tool surface, resulting in a good finish surface.
